Setup guide Pimax VR

Setup guide Pimax VR for Pimax 5K Plus/Artisan/8K PLUS/5K XR.

You could find our Knowledge base and video instruction here: https://support.pimax.com/en/support/solutions

Pitool download:

PiToolSetup_1.0.1.249_R255.exe https://drive.google.com/open?id=1sy-ZbUHQbwuzXOid1Vh39qoA1HNmSj-P
PiToolSetup_1.0.1.258.exe https://drive.google.com/open?id=1n9mc4lE77jWV09Ap4rKsfX5JhwH7FCcB

Pitool installation:

  • When you install Pitool, please make sure you have closed or disabled all security and antivirus
  • software. If you have forgot to do it, you could re-install Pitool again to make sure all files have been installed.

Setup guide

Connect your headset to your computer

  1. Connect the data cable USB interface, DP interface and power adapter to the corresponding slot
  2. Plug the power adapter into a power outlet
  3. Connect the data cable USB connector to the USB 2.0/3.0/3.1 port on your computer.
  4. Connect the data cable DP interface to the DP port on the discrete graphics card. Do not connect to the DP port on the motherboard.

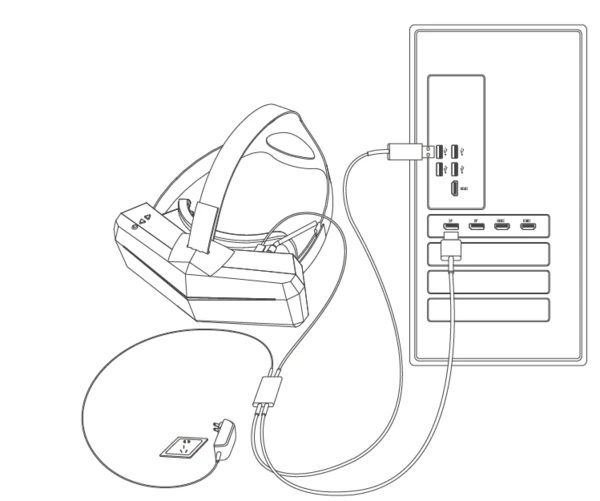

  5. The connection between the equipment cable and the PC desktop is as shown in the figure below.

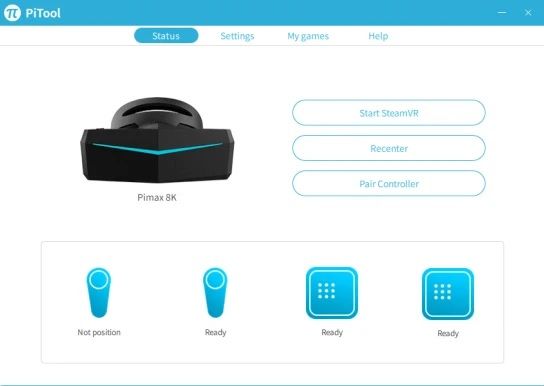

  6. After the device is properly connected, the screenshot of the PC is as follows

Setup SteamVR

  1. Open Steam official website,  click to download and install the Steam program
  2. After installing the Steam software, open Steam, click on the Library—-Tools, find Steam VR, click Install

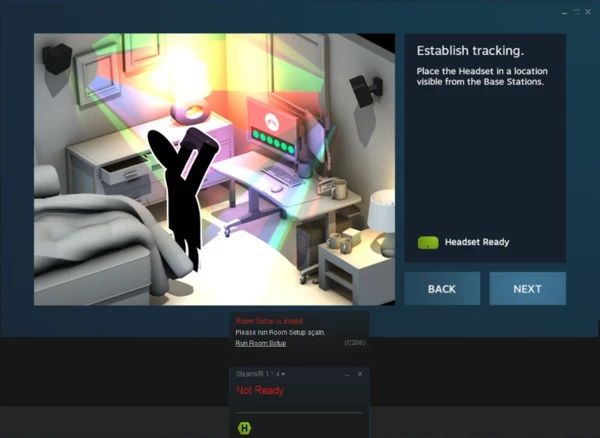

  3. After installation, open SteamVR, the first time you need Steam VR room settings, click Run Room Setup first

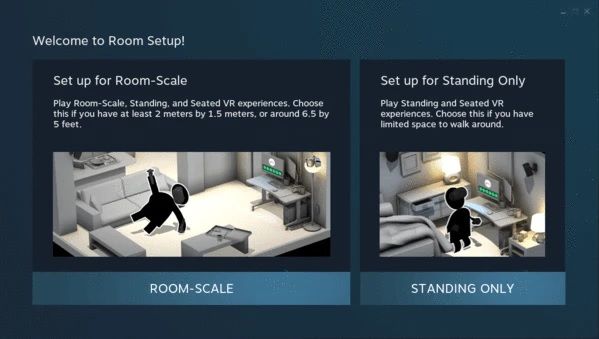

  4. Select Room-scale or standing only
